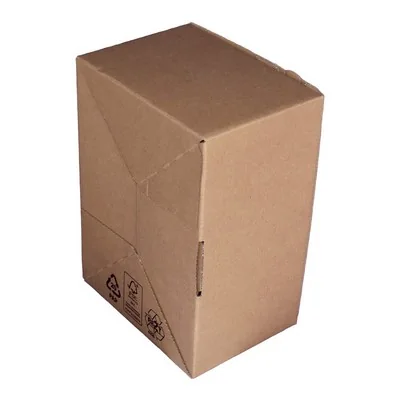

Automatic locking bottom
Form the box by pressing its sides together and lock the bottom with the integrated locking tabs.

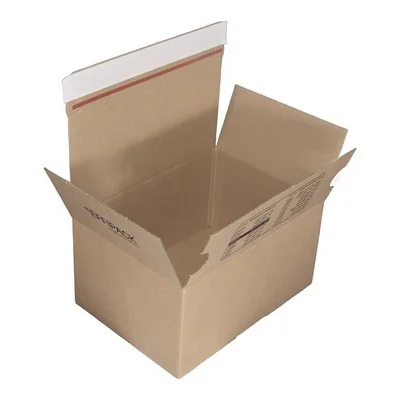

Self-adhesive corrugated e-commerce box
EFFIBOX

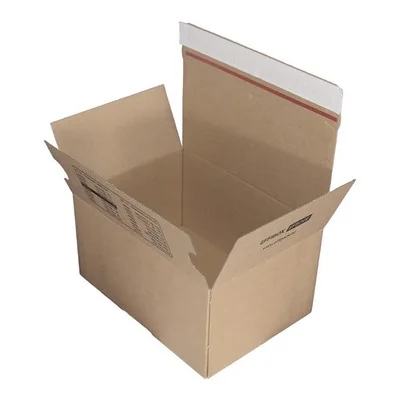

Made from premium-quality corrugated board, this crash-lock box is designed for fast assembly at busy packing stations. Press the sides into shape, lock the base using the integrated locking tabs, then close it using the integrated self-adhesive strip.
- Automatic base
- Self-adhesive closure
- Integrated tear tape
- Height-adjustable options
Features that make a difference
Designed for a smooth pack routine.

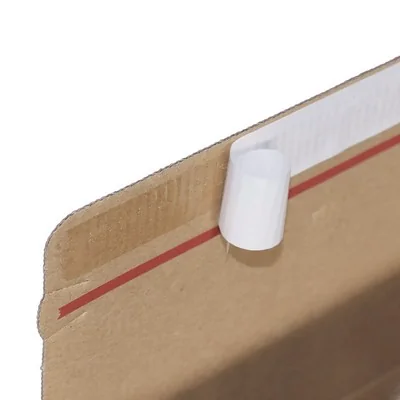

Integrated self-adhesive closure
Close the parcel without the need for packing tape.

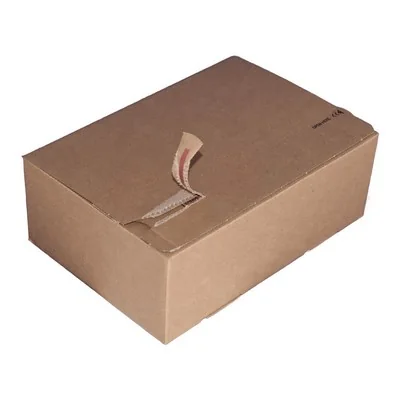

Integrated tear tape
A built-in tear tape supports straightforward opening from either side.
Bottom with a fully overlapping flap
The bottom with a fully overlapping flap helps keep the product securely contained in the packaging during transport.

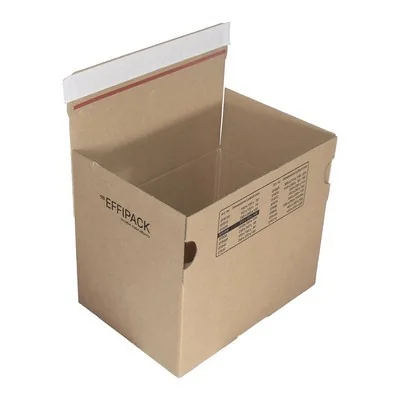

Height-adjustable formats
Height adjustment is available on article numbers EFB60, EFB70 and EFB90.
Material and handling details
FSC® certified premium-quality corrugated board with a finger-safe wave-cut edge.
EFFIBOX product range
Article specifications
Dimensions are shown in millimetres. Height-adjustment range applies to the indicated variants. Contact Effipack for current availability and a quotation.
| Article no. | Inside dimensions (mm) | Outside dimensions (mm) | Weight (g) | Board quality |
|---|---|---|---|---|
| EFB10E | 160 × 130 × 70 | 164 × 134 × 82 | 48 | E-702 |
| EFB10 | 160 × 130 × 70 | 166 × 136 × 88 | 53 | B-302 |
| EFB20 | 200 × 200 × 100 | 206 × 206 × 118 | 113 | B-302 |
| EFB30E | 213 × 153 × 109 | 217 × 157 × 121 | 79 | E-702 |
| EFB30 | 213 × 153 × 109 | 219 × 159 × 127 | 86 | B-302 |
| EFB40E | 230 × 160 × 80 | 234 × 164 × 92 | 84 | E-702 |
| EFB40 | 230 × 160 × 80 | 236 × 166 × 98 | 86 | B-302 |
| EFB50 | 260 × 220 × 130 | 266 × 226 × 148 | 150 | B-302 |
| EFB60 | 305 × 215 × 148–220 | 311 × 221 × 166–238 | 188 | B-302 |
| EFB70 | 310 × 230 × 80–160 | 316 × 236 × 98–178 | 176 | B-302 |
| EFB72 | 310 × 230 × 110 | 316 × 236 × 128 | 176 | B-302 |
| EFB74 | 310 × 230 × 160 | 316 × 236 × 178 | 198 | B-302 |
| EFB80 | 340 × 250 × 130 | 346 × 256 × 148 | 203 | B-302 |
| EFB90 | 390 × 290 × 180–280 | 396 × 296 × 198–298 | 326 | B-302 |
| EFB100 | 400 × 260 × 250 | 406 × 266 × 268 | 297 | B-302 |
| EFB110 | 430 × 310 × 200 | 436 × 316 × 218 | 356 | B-302 |
The top flap overlaps fully on height-adjustable boxes only at minimum height. Technical properties may be updated as products are improved.
Bundle and pallet information
| Article | Bundle qty. | Bundle weight (kg) | Bundle dimensions (mm) | Pallet qty. | Pallet weight (kg) | Pallet dimensions (mm) |
|---|---|---|---|---|---|---|
| EFB10E | 20 | 0.96 | 298 × 202 × 103 | 5760 | 309 | 1200 × 810 × 1996 |
| EFB10 | 20 | 1.06 | 303 × 205 × 168 | 3200 | 198 | 1200 × 840 × 1824 |
| EFB20 | 20 | 2.26 | 413 × 305 × 180 | 1600 | 208 | 1240 × 826 × 1944 |
| EFB30E | 20 | 1.58 | 374 × 264 × 95 | 3600 | 313 | 1200 × 800 × 2051 |
| EFB30 | 20 | 1.72 | 379 × 267 × 162 | 1800 | 182 | 1200 × 826 × 1768 |
| EFB40E | 20 | 1.68 | 398 × 242 × 105 | 3600 | 335 | 1222 × 800 × 2032 |
| EFB40 | 20 | 1.72 | 403 × 245 × 186 | 2000 | 199 | 1270 × 811 × 2003 |
| EFB50 | 20 | 3.00 | 493 × 355 × 171 | 1000 | 177 | 1200 × 851 × 1858 |
| EFB60 | 20 | 3.76 | 533 × 368 × 180 | 800 | 179 | 1200 × 800 × 1944 |
| EFB70 | 20 | 3.52 | 553 × 316 × 189 | 1000 | 203 | 1200 × 879 × 2036 |
| EFB72 | 20 | 3.52 | 553 × 345 × 174 | 800 | 168 | 1200 × 800 × 1882 |
| EFB74 | 20 | 3.96 | 553 × 395 × 173 | 800 | 184 | 1200 × 800 × 1871 |
| EFB80 | 20 | 4.06 | 603 × 385 × 180 | 800 | 189 | 1200 × 800 × 1948 |
| EFB90 | 20 | 6.52 | 693 × 475 × 192 | 400 | 158 | 1200 × 800 × 2059 |
| EFB100 | 20 | 5.94 | 673 × 515 × 164 | 440 | 158 | 1200 × 800 × 1952 |
| EFB110 | 20 | 7.12 | 753 × 515 × 175 | 400 | 170 | 1200 × 800 × 1898 |
Need a quotation or
technical details?
Contact the Effipack team for current availability, product documentation and trade terms.
